Monoblock machines
Filling and capping in a single compact machine.
The BSC inline monoblock combines filling and capping in a single machine, avoiding moving uncapped containers between machines. It fills with a flowmeter and caps automatically with pneumatic screwers and pick-and-place cap placement, in bottles, cans, pails and drums from 500 ml to 20 litres, with product-contact parts in AISI 316L and control of incorrectly capped containers. BSC also builds monoblocks for vials (pharmaceutical line) and alternating rotary units with 1 to 4 heads.
Inline monoblock
- Format: bottles, cans, pails and drums from 500 ml to 20 litres.
- Filling with an Endress+Hauser mass flowmeter.
- Output in 1-litre containers: 500 (1 nozzle) or 1,000 (2 nozzles) bottles/hour.
- Output in 5-litre containers: 200 or 400 bottles/hour; in 20 litres, 150 or 300 per hour.
- Automatic capping with pneumatic screwers and pick and place; 3,000-cap feeder.
- Filling temperature range from -10 °C to 125 °C.

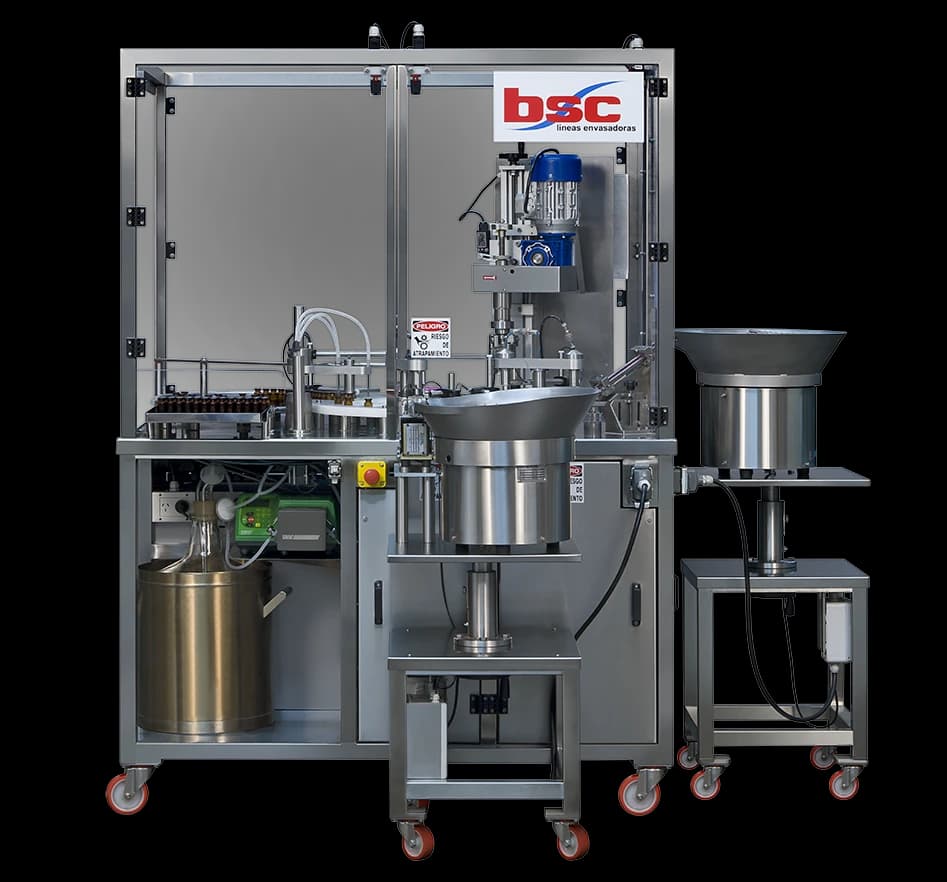

Pharmaceutical MRA monoblock
- Format: vials from 5 ml up to 250 ml.
- Filling accuracy of ± 0.2 % at 250 ml.
- Digital mass or electromagnetic flowmeters, or a peristaltic pump.
- Anti-entrapment safety guarding.
- Filling temperature range from -10 °C to 125 °C.

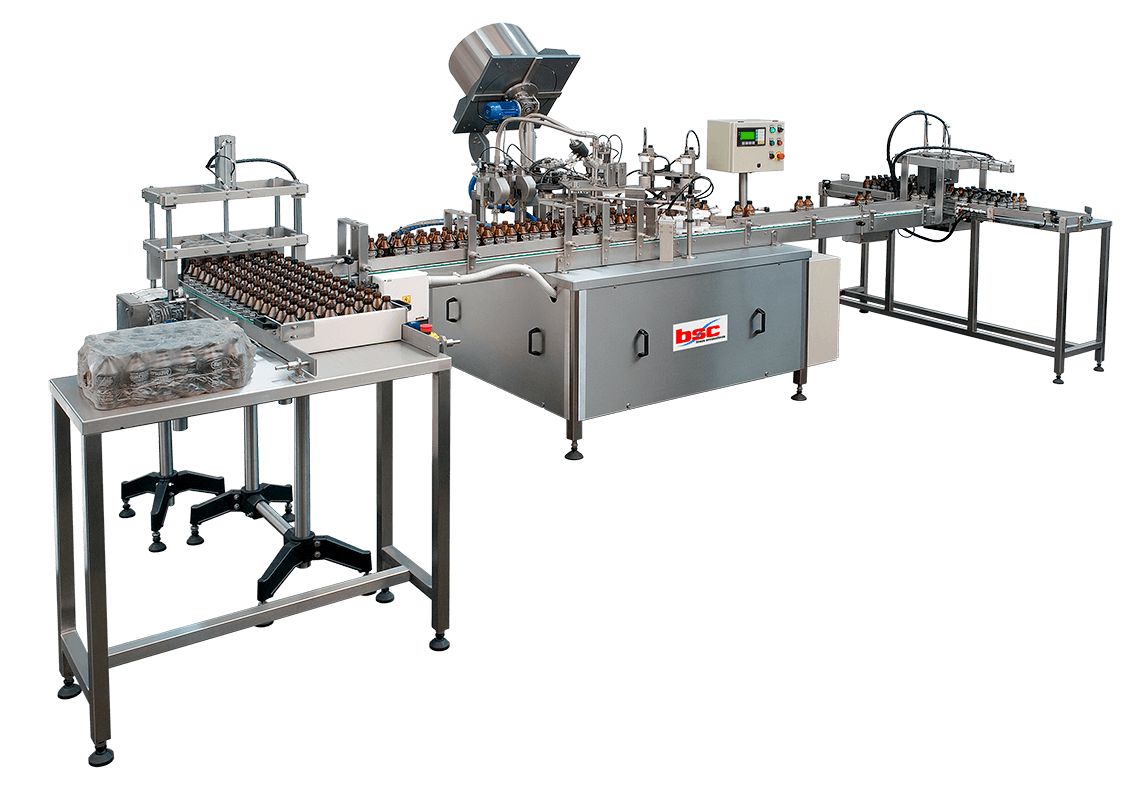

Alternating rotary monoblock
- Available with 1 to 4 filling nozzles.
- Designed to reduce machine footprint and avoid moving uncapped containers between machines.
- Compact construction with fewer mechanical parts simplifies maintenance and secures the whole process.
- Can be built with electronic flowmeters or a peristaltic pump, depending on the industry requirements.
- No mechanical parts change in the filling nozzle when switching container size, shortening changeover times.
Filling range and tolerance
| Filling range | Tolerance |
|---|---|
| 1-litre containers | ± 0.2 % = ± 2 grams |
| 5-litre containers | ± 0.1 % = ± 5 grams |
| 20-litre containers | ± 0.03 % = ± 6 grams |
Suitable for
Foaming, viscous, corrosive, abrasive, flammable and flowable products, including liquids with solid particles in suspension.
Example products
Mineral oils, paints, isocyanates and solvents, glues and adhesives, waxes, fertilizers, herbicides, seed treatment, automotive products, detergents and bleach.
Container formats
Bottles, cans, pails and drums from 500 ml up to 20 litres. Dual-chamber containers (1+1) can be filled with different products by installing two parallel filling circuits.
Variants
- MRA-Mass — mass dosing flowmeter (Coriolis principle).
- MRA-BP — with peristaltic pump.
Benefits
- Product temperature range from -10 °C to 125 °C.
- Perfect adaptation to every type of liquid.
- Maximum accuracy and repeatability of the dispensed volumes.
- Volume adjustment from the touch screen, with unlimited stored recipes.
- Great versatility in format changeovers.
- Fast format changeovers, with no tools required.
- Quick adjustment of container dimensions and dispensed volumes.
- Programmable cleaning speed per product: better cleaning quality in less time.
- Low consumption of washing liquid.
- Clean-in-place (CIP) and sterilise-in-place (SIP) as standard: 150 °C for up to 60 minutes.
- Simple, linear filling circuit with no moving mechanical parts.
Technical specifications
- Measuring technology: Endress+Hauser mass flowmeter.
- Container range: from 500 ml up to 20 litres.
- Automatic capping system with pneumatic screwers.
- Individual torque control per screwer, up to 20 Nm.
- Automatic cap placement with pick-and-place technology.
- Capping statistical error: 1 cap per 10,000 units.
- Cap feeder for 3,000 caps, with automatic start and stop, and a rotary sorting hopper on top.
- Capping control by liner presence and control of incorrectly capped containers.
- Product-contact parts in AISI 316L stainless steel.
- AISI 304 structural tube frame (50 × 50 mm) and folded AISI 304 sheet frame doors.
- AISI 304 structural tube guards (40 × 40 mm), with tempered-glass or polycarbonate doors and an open/close sensor.
- Drip control: filling nozzle with drip control and a retractable tray.
- 7" touch-screen HMI and Allen-Bradley PLC.
- CIP/SIP cleaning with a self-draining system and an automatic wash programme, with no need to dismantle any part.
- Pipework welded with Orbital Welding TIG and argon backing inside and out.
- Manual column height adjustment, with a rotary handwheel.
- Optional production reports, with an internet-connected PLC and a real-time online dashboard.
Industria 4.0
Real-time reporting and OEE monitoring
Frequently asked questions
What is a monoblock filler-capper?+
A compact machine that integrates filling and capping in a single unit, avoiding moving uncapped containers between machines. It is configured with 1 to 4 fill heads.
What formats and accuracy does it handle?+
Bottles, cans, pails and drums from 500 ml to 20 litres. Accuracy by container size: ± 0.2 % in 1-litre containers, ± 0.1 % in 5 litres and ± 0.03 % in 20 litres. Filling temperature range from -10 °C to 125 °C.
What dosing system does it use?+
Digital mass or electromagnetic flowmeters, or a peristaltic pump, depending on the product and the industry.
Which industries is it ideal for?+
Chemical, pharmaceutical and veterinary.
What maintenance advantages does it offer?+
The compact build and the removal of many mechanical parts simplify maintenance; changing container size needs no valve parts changes, which shortens format changeover.
