Capping machines
Secure cap pick-up and placement, container after container.
BSC's automatic capping machine for jerrycans is an industrial capper that places and screws caps container after container, with capping torque adjustable up to 20 Nm per head. It handles threaded, press-on and valved caps, on bottles and jerrycans from 500 ml to 20 litres, with a pick-and-place system and capping control.
Full Line capper
- Up to 6 screwing motors, in 4, 5 or 6-head configurations.
- Output in 1-litre containers: 2,200, 2,750 or 3,300 bottles/hour depending on the head count.
- Output in 20-litre containers: up to 1,200 containers/hour.
- Cap feeder with a 3,000-cap capacity, with automatic start and stop.
- Industry 4.0: production reports exported over USB in .XLS format.
- Motorised automatic column height adjustment, with the value stored per recipe.
- 7" touch-screen HMI, with Schneider Electric PLC and electronic components.
TAS line capper
- One screwing head with a servo motor and one head for press-on caps.
- Output in 1-litre containers: 2,000 bottles/hour.
- Output in 5-litre containers: 750 bottles/hour; in 20-litre containers, 600 per hour.
- Cap feeder with a 2,000-cap capacity, with automatic start and stop.
- Manual column height adjustment, with a rotary handwheel.
- 7" touch-screen HMI, with Schneider Electric PLC and electronic components.

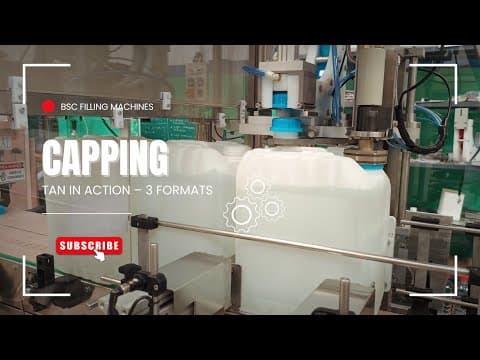

TAN line capper
- One screwing head, with automatic cap placement by pick-and-place technology.
- Output of up to 1,000 containers/hour at 1 litre, 750 at 5 litres and 600 at 20 litres.
- Cap elevator with a 2,000-cap capacity, with automatic start and stop.
- Statistical error of 1 cap in every 10,000 units and repeatability of ± 0.5 mm.
- 7" touch-screen HMI, with Kinco PLC and electronic components.
- Frame doors, guarding, upper rotary hopper and capping control available as options.
TA line capper
- One screwing head, with manual cap placement and automatic pneumatic screwing.
- Output of up to 1,000 containers/hour at 1 litre, 750 at 5 litres and 600 at 20 litres.
- Torque adjustment up to 20 Nm.
- 4" touch-screen HMI, with Kinco PLC and electronic components.
- Open configuration, without guarding or cap elevator: the simplest option in the series.
Suitable for
Pre-threaded plastic caps, valved caps and press-on caps. Threaded formats, with or without a valve.
Example products
Containers from the agrochemical, chemical, food, home-care and automotive industries.
Container formats
Bottles and jerrycans from 500 ml up to 20 litres, in round, square and rectangular formats.
Technical specifications
- Automatic capping system with pneumatic screwing heads.
- Automatic cap placement using pick-and-place technology.
- Individual torque adjustment for each screwing head, up to 20 Nm.
- Statistical error: 1 cap in every 10,000 units. Repeatability of ± 0.5 mm.
- Upper rotary hopper with cap orientation system.
- Capping control by liner presence, plus detection of incorrectly capped containers.
- AISI 304 structural tube frame, 50 x 50 mm; folded AISI 304 sheet frame doors.
- AISI 304 structural tube guarding, 40 x 40 mm, with tempered-glass doors and open/close sensor.
Benefits
- Perfect adaptation to every type of container and cap.
- Maximum precision and repeatability thanks to the pick-and-place system.
- Adjustments from the touch screen, with unlimited stored recipes.
- Fast format changeovers, with no tools required.
- Efficient adjustment of container and cap dimensions.
- Minimal maintenance, optimising production time.
Industria 4.0
Real-time reporting and OEE monitoring
Sectors served
Agricultural industry
Liquid fertilizers and biostimulants · Herbicides, fungicides and insecticides · Seed treatment products
More infoChemical industry
Paints, varnishes and coatings · Isocyanates, solvents and thinners · Glues and adhesives
More infoDetergents, acids and corrosives
Detergents · Acidic products · Bleach
More infoOther industries
Food and beverages · Pharmaceutical and parapharmaceutical products · Veterinary products
More infoGeneral information about the machines
Frequently asked questions
What cap types does it apply?+
Threaded, press-on and valve caps, on bottles and jerrycans from 500 ml to 20 litres, with a pick-and-place system.
What capping torque does it handle?+
Adjustable torque of up to 20 Nm per head, with capping control to ensure a proper seal container after container.
What output can it reach?+
The Full Line (up to 6 screwing heads) reaches 3,300 bottles/hour in 1 litre and up to 1,200 containers/hour in 20 litres. The TAS 1+1 combines a threaded head and a press-on head in one machine.
How precise is cap placement?+
The pick-and-place system in the cappers allows the cap to be gripped securely and placed precisely, container after container, with a statistical error of 1 cap per 10,000 units and ± 0.5 mm repeatability. The cap feeder (2,000 to 3,000 caps) starts and stops automatically.
Can it be integrated with the filler?+
Yes: it is installed in line after the filler, or the whole process is solved in a single machine with the monoblock filler-capper.
